Two-component curing continuous coating system for urethane film

Features

• High Transparency:
  With a haze of 0.7% or less and a total light transmittance of 92% or more, it is possible to produce highly transparent, non-yellowing urethane film.

• Solvent-free, High Productivity:
  This environmentally friendly, solvent-free system can produce films and sheets with thicknesses of 200 μm or more in a single pass, which are difficult to coat with solvent-based urethane resins or low-viscosity acrylic resins.

• Flexibility, Durability, High Heat Resistance, and Excellent Surface Properties:
  With its high heat resistance and fisheye-free properties without sacrificing the flexibility characteristic of urethane, it can be used in a wide range of applications. It can also be used for cast molding.

• Self-healing:
  Its self-healing properties enable its application in a variety of exterior components.

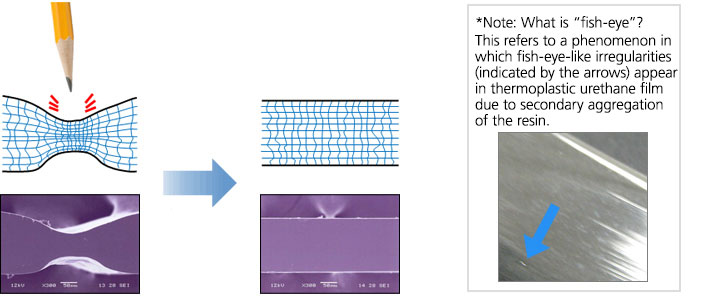

Self-healing function

Even if scratched, it will recover by the next day.
DIC's unique cross-linking design achieves both flexibility and strength.

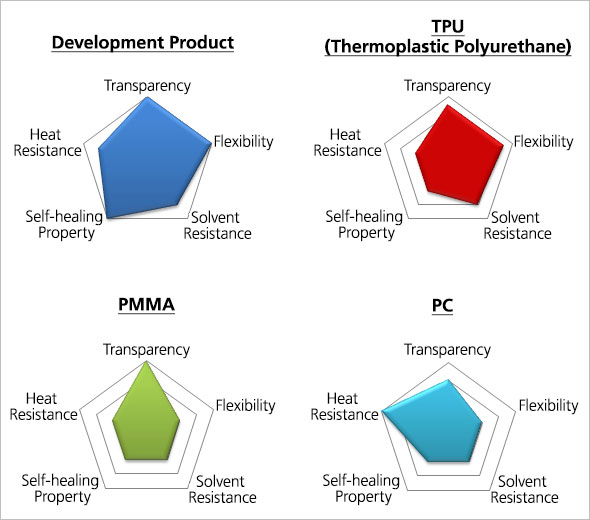

Comparison with other materials

Main Applications

• Various optical components

• Light guide film (LGF), light guide sheet, light guide plate

• Air gap filling sheet

• OCA (Optical Clear Adhesive Tape)

• Protective coating film

Product properties

Mechanical properties

Optical properties
