樹脂構造別
EPICLON Product | Structure | Description | Features | Semicon ductor ╱PWB |
Composite materials | Automot ive╱ Industrial Adhesives |
Coating | |
---|---|---|---|---|---|---|---|---|
BPF | 830 series | ![]() |

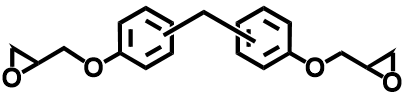

Bisphenol F type | Liquid and Low viscosity | 〇 | 〇 | 〇 | 〇 |

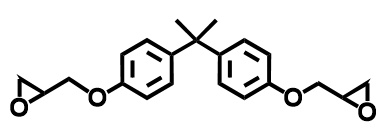

BPA | 840/850 series | ![]() |
Bisphenol A type | Liquid | 〇 | 〇 | 〇 | 〇 |

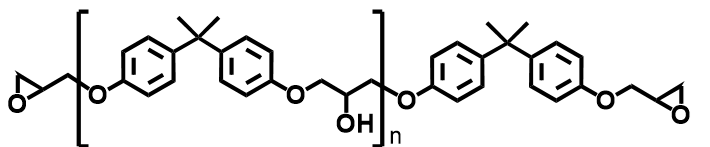

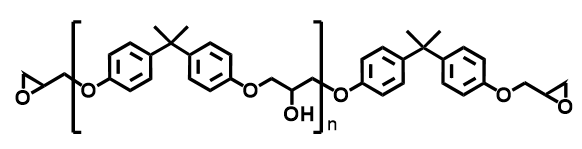

860,1050 to 7050, HM-091 series |
![]() |
Bisphenol A type | Semi solid type and solid type | 〇 | 〇 | 〇 | 〇 | |

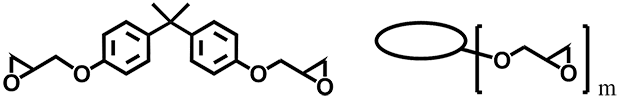

855/858 D-596 |
![]() |
Diluted Bisphenol A type | Low viscosity | 〇 | 〇 | 〇 | ||

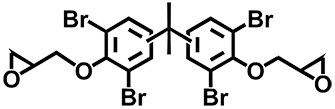

152/153 series | ![]() |
High-brominated Bisphenol A type | Flame retardance | 〇 | 〇 | |||
1121/1123 | ![]() |

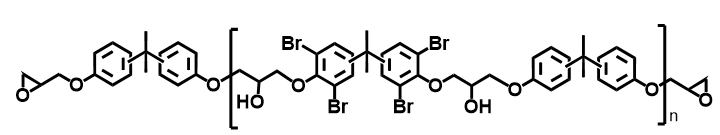

Low Brominated Bisphenol A type | Flame retardance | 〇 | ||||
Novolac type | N-6XX series | ![]() |

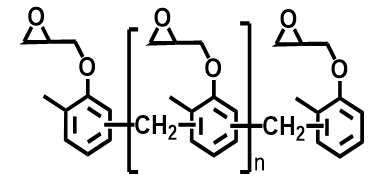

Cresol novolac type <ECN> |
Multifunctionality | 〇 | 〇 | 〇 | 〇 |
N-6XX-EXP series | Low chlorine type | 〇 | 〇 | 〇 | 〇 | |||
N-7XX series | ![]() |

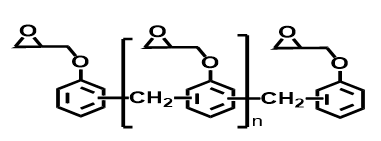

Phenol novolac type <EPN> |
Multifunctionality | 〇 | 〇 | 〇 | 〇 | |
N-8XX series | Structure not disclosed | BPA Novolac type | Multifunctionality | 〇 | ||||
Special structure Type | HP-7200 series | ![]() |

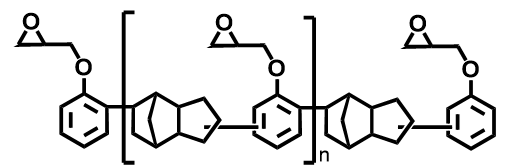

DCPD-Phenol type | Low moisture absorption, Low dielectric constant | 〇 | 〇 | 〇 | |
HP-5000 HP-9900-75M HP-5600 |
Structure not disclosed | Modified novolac type | Flame retardance, Low dielectric constant | 〇 | ||||

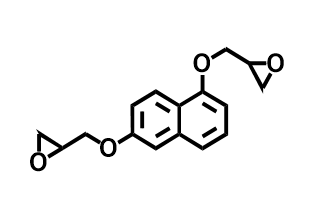

HP-4032 series | ![]() |
Naphthalene type | Liquid type, Purity, High heat resistance | 〇 | 〇 | 〇 | ||
HP-820 | ![]() |
Alkyl Phenol type | Low viscosity, Fast curing |
〇 | 〇 | 〇 | 〇 | |

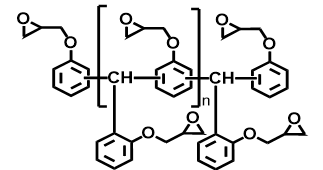

HP-7241 HP-7250 |
![]() |
Triphenyl methane type<TPM> | High heat resistance | 〇 | 〇 | 〇 | ||
HP-47XX series | ![]() |

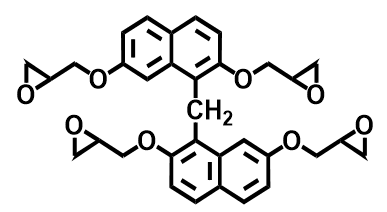

Naphthalene type | High heat resistance | 〇 | 〇 | 〇 | 〇 | |
HP-9500 HP-6000 |
Structure not disclosed | Naphthalene type | High heat resistance | 〇 | 〇 | 〇 | ||
EXA-7190 | Structure not disclosed | Bio based type | High heat resistance Low viscosity | 〇 | 〇 | 〇 | ||
Flexible Type | EXA-4850 series
HP-A-4860 |
Structure not disclosed | Elastic modified type | Toughness, Flexibility | 〇 | 〇 | 〇 | |
TSR-601, TSR-930, TSR-960 |
Structure not disclosed | Rubber modified type | Toughness, Flexibility | 〇 | 〇 | 〇 | ||
TSR-300 | Structure not disclosed | Urethane modified type | Toughness, Flexibility | 〇 | 〇 | |||
TSR-400 | Structure not disclosed | Isocyanate modified type | Toughness, High heat resistance |
〇 | 〇 | |||
High Mw Type | H-360 EXA-123 |
![]() |
Modified Bisphenol A type | High molecular weight | 〇 | |||
H-303-45M/304/305 H-4XX series |
Structure not disclosed | Modified Bisphenol A type |
High molecular weight | 〇 | ||||
Fast cure | 5500/5800 | Structure not disclosed | Modified type | Fast curing | 〇 | |||
Curing agent for Epoxy resin |
HPC-8000 HPC-8000L |
Structure not disclosed | Active ester type | Low moisture absorption, Low dielectric constant |
〇 | 〇 | ||
HPC-9500 | Structure not disclosed | Naphthalene type | Heat resistance | 〇 | 〇 | |||
TD-2XXX series | ![]() |

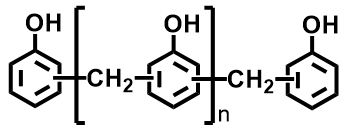

Phenol novolac type | Curability, Heat resistance, Moisrure resistance |
〇 | 〇 | |||

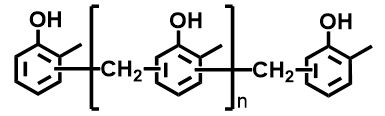

KA-116X series | ![]() |
Cresol novolac type | Heat resistance, Moisrure resistance |
〇 | 〇 | |||

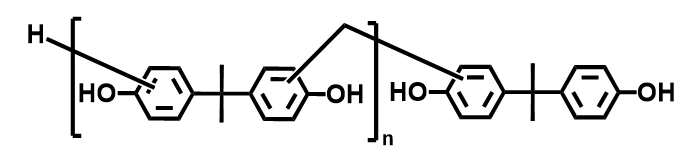

VH,KH series LF series |
![]() |
BPA novolac type | Heat resistance, Mechanical properties |
〇 | 〇 | |||

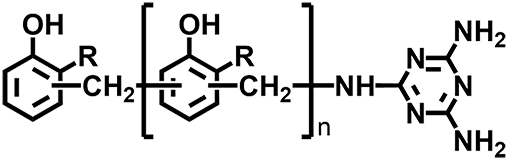

LA series | ![]() |
Amino triazine Phenol (/Cresol) novolac Type | Adhesion, Flame retardance |
〇 | 〇 | |||
Blocked NCO | BURNOCK DB-1010/1020 |
Structure not disclosed | Blocked poly isocyanate type | Adhesion, Flexibility, Toughness |
〇 |
